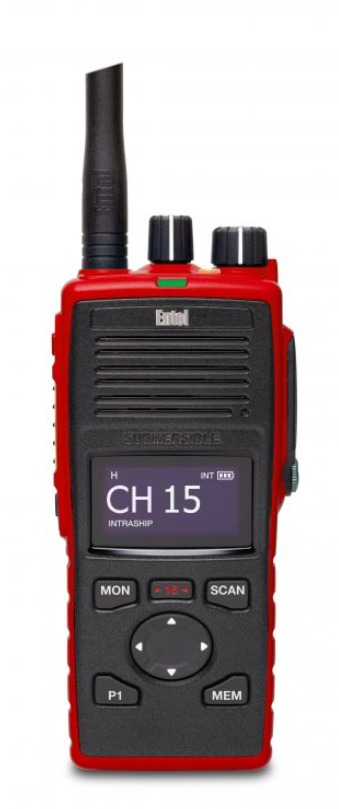

ENTEL DT944FF Fire Fighter (MED ONAYLI)
Stok Kodu
GHKRSWZ5
Piyasa Fiyatı
FİYATI SORUNUZ
Fiyat
0,00 USD + KDV
0,00 TL
The industrial grade DTEx Fire Fighter Series is designed and approved to meet the latest MED standard implementation regulation MED/5.20 and European ATEX directive.
The ultra durable fire-red coloured DTEx Series sets the benchmark for next-generation MED compliant Firefighter radios. Standard features include high visibility OLED display, high torque ergonomic controls designed for gloved-hand use, and industry-leading IP68 2m 4 hours submersible rating, to provide 100% reliability and usability even in the most extreme conditions.
KEY FEATURES
- ATEX II 2G Ex ib IIC T4 Gb
- All INT, USA and CAN channels
- IP68 Submersible (2m, 4 hours)
- MILSTD construction 810C/D/E/F/G
- High capacity Li-Ion battery
- Exceptionally loud & best clarity audio - in class
- Display channel number & frequency
- Programmable buttons
- Gold plated accessory connector
- Locking accessory connector
- Accessory audio tailoring optimises audio for each accessory
- Easy to read, high contract white on black OLED display
IN DEVELOPMENT
- Scan
- Channel voice annunciation
- Advanced voice annunciation (battery capacity etc.)
General
| Frequency Range | VHF 156 - 163.275MHz |
| Channels | Marine INT/USA & Canadian |
| Battery | CNB950EV2 1800mAh Lithium-Ion |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ± 0.5ppm |
| Operating Voltage | 7.4v |
| Programmable Buttons | 3 |
| Channel Spacing Analogue | 12.5/20/25KHz |
| Battery Endurance (5/5/90 - Analog Mode) | 14 hours |
| Battery Endurance (5/5/90 - DMR Mode) | n/a |
Transmitter
| Output Power | 1 Watt |
| Modulation Limiting | ±2.5kHz @ 12.5kHz ±5.0kHz @ 25kHz |
| Conducted / Radiated Spurious Emissions | Better than -36dBm |
| Adjacent Channel Power | Better than 60dB |
| Audio Distortion (typical) | 3% |
Receiver
| Sensitivity (typical) | -121dBm (0.2uV) for 12dB SINAD |
| Intermodulation response rejection (ETSI) | > 70dB |
| Adjacent Channel Selectivity (ETSI) | > 70dB(12.5KHz) 60dB(25KHz) |
| Spurious Response Rejection (ETSI) | > 70dB |
| Audio Output Power | 1 Watts |
| Audio Distortion (typical) | 3% |
| Conducted Spurious Emission (ETSI) | > - 57dBm |
Environmental
| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | MIL-STD-810 C/D/E/F/G |
| Dust & Liquid Ingress | IP68 (2m 4h Submersible) |
