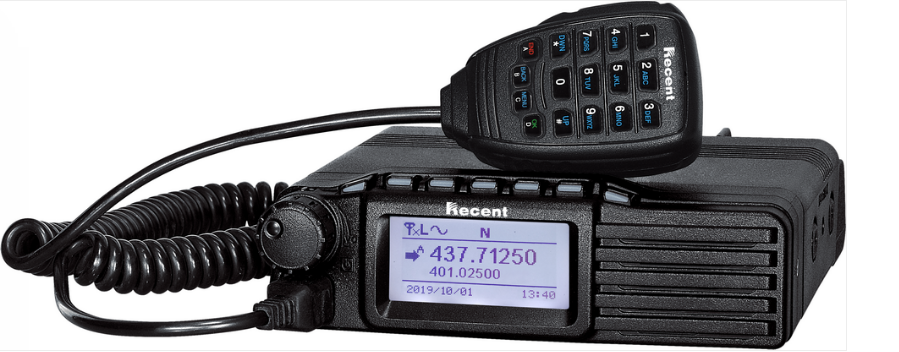

RS-938D 50W DMR Digital Mobile Radio

　Features

　　Dual Display, Dual Watch

　　Support AMBE3000 (AMBE++) Vocoder

　　Direct Dual-slot Technology

　　Manual Frequency Input, Tail-tone Elimination

　　Digital and Analog Dual Mode

　　Multi Call Mode: Individual Call, Group Call, All Call

　　Voice Encryption

　　Remote Kill and Activate

　　Short Message Function

　　Emergency Alarm

　　High/Low Power Selectable

　　Programmable Buttons

　　Remote Control Background Monitoring Function

　　Recording Function (Optional), GPS Function (Optional)

　　Busy Lockout,  TOT Time-out Timer

　　Scan, PC Programming Function

Specifications

　　Frequency: 136-174MHz/400-470MHz

　　Channel Capacity: 4000 Channels (250 Zones × 16 Channels)

　　Output Power: 50W/25W

　　Channel Spacing: 12.5KHz/25KHz

　　Normal Operating Voltage: DC13.8V±15%

　　Operating Temperature: -20℃~+60℃

　　Frequency Stability: ±2.5ppm

　　Analog Sensitivity: -121dBm (12dB SINAD)

　　Digital Sensitivity: -119dBm (BER≤5%); -117dBm (BER≤1%)

       4FSK Modulation Mode: 7K6ΦFXD @Data，7K6ΦFXE @Data & Voice

　　Dimensions(WxHxD): 180×50×160mm

　　Weight: 1.1kg
