Seiwa - Explorer 23 WiFi
0,00 TL

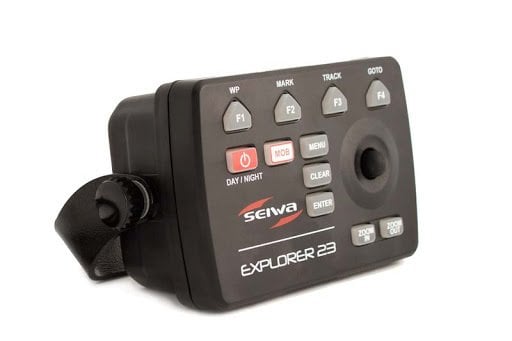

Explorer 23 WiFi
NEW Wireless lan version! The Chartplotter + Multifunction Controller for the professional fishermen or for high-tech dashboard lovers, now with WiFi.
Explorer 23 chartplotter + multi-function controller is the perfect mate for the professional fishermen or for high-tech dashboard lovers. Control on any HDMI display:
• Chartplotter
• Fish finder*
• Any connected NMEA 0183 and NMEA 2000 compatible device* such as AIS, autopilot, engine, etc.
• Chartplotter
• Fish finder*
• Any connected NMEA 0183 and NMEA 2000 compatible device* such as AIS, autopilot, engine, etc.
*External device not included.
Tough and reliable
The back-lit keyboard is easy to use even with gloves and in any condition. The optional remote control gives and extra hand, for example to quickly
save marks during your activity.
The back-lit keyboard is easy to use even with gloves and in any condition. The optional remote control gives and extra hand, for example to quickly
save marks during your activity.
HDMI Video output
EXPLORER 23 is compatible with any HDMI display to provide an HD resolution experience!
NMEA 0183 & 2000
EXPLORER 23 is extremely versatile as it comes with two NMEA 0183 serial ports and one NMEA 2000 port to connect any compatible device such
as AIS, autopilot, engine, etc.
Configure your desired view
Beside choosing any display size, you can also configure the multi-vision layout with fish finder, map and data boxes: full page or split page, with no data, one or two rows of data.
Customize the function keys
With EXPLORER 23, you can configure the four functional keys with your desired function shortcuts, for the top used commands.
Never miss a thing
Browse the Fish Finder history up to 5 minutes (when connected to a fish finder) and, if you find anything interesting, place a mark on it! With the Cursor Box smart function,
point the cursor on map to instantly view distance and bearing.
TECHNICAL SPECIFICATIONS
• Dimension: 172.5 x 106.5 x 84.4 mm (6.8” x 4.2” x 3.3”) with holder
• Weight: 350 g
• Compatible with any HDMI display
• Power consumption: 1.2W typical
• Supply Voltage: 10-35 Vdc
• Cartridge slot: 1 x micro SD Card (not included)
• Back-lit keyboard
• Integrated remote control receiver (radio IF 2.4 Ghz)
• Waterproof IPx6
• Storage temperature: -20 +80 °C / Operating temperature: -20 +60°C
• Connectors:
• 1x Supply and data cable: 2 NMEA 0183 ports + external alarm
• 1x NMEA 2000
• 1x GPS: 6 pins (powered 10-35 Vdc)
• 1x Built-in HDMI video input cable
• Dimension: 172.5 x 106.5 x 84.4 mm (6.8” x 4.2” x 3.3”) with holder
• Weight: 350 g
• Compatible with any HDMI display
• Power consumption: 1.2W typical
• Supply Voltage: 10-35 Vdc
• Cartridge slot: 1 x micro SD Card (not included)
• Back-lit keyboard
• Integrated remote control receiver (radio IF 2.4 Ghz)
• Waterproof IPx6
• Storage temperature: -20 +80 °C / Operating temperature: -20 +60°C
• Connectors:
• 1x Supply and data cable: 2 NMEA 0183 ports + external alarm
• 1x NMEA 2000
• 1x GPS: 6 pins (powered 10-35 Vdc)
• 1x Built-in HDMI video input cable
SOFTWARE FEATURES
• 4 fully configurable functional keys
• Multi-vision configurable layout with fish finder, map and data boxes
• Full menu on Map
• Navigation functions: Go To, Add Waypoints, Marks, MOB, Easy routing
• Route management
• Tracks recording and management
• Customizable data boxes
• Cursor Box showing distance and bearing of cursor location
• Customizable ship profile
• Simulation mode
• Grounding alarm
• AIS compatible
• Seiwa Black Box Fish finder compatible
• Fish finder history up to 5 minutes (when connected to a fish finder)
• Engine control page (when connected to an engine)
• 4 fully configurable functional keys
• Multi-vision configurable layout with fish finder, map and data boxes
• Full menu on Map
• Navigation functions: Go To, Add Waypoints, Marks, MOB, Easy routing
• Route management
• Tracks recording and management
• Customizable data boxes
• Cursor Box showing distance and bearing of cursor location
• Customizable ship profile
• Simulation mode
• Grounding alarm
• AIS compatible
• Seiwa Black Box Fish finder compatible
• Fish finder history up to 5 minutes (when connected to a fish finder)
• Engine control page (when connected to an engine)
